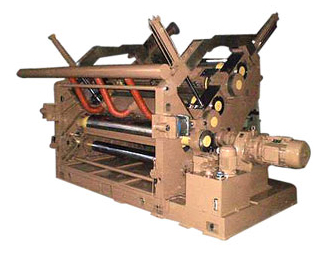

Fingerless Single Facer Corrugating Machine

Fingerless Single Facer Corrugating Machine (Twin Facer Design). We are one of the leading exporter of the specially designed Reel Stand Hydraulic Machine.

Design Speed 70Mt/Min.
Lower Flute Roll Dia 284mm.
Vacuum suction fingerless design provides prefect flute formation driven by heavy duty Blower.
Pressure Roll dia 305mm.
Twin Facer structure One Flute Unit working and another having for immediate order change.
Heavy Duty Quick Roll change cassette system is controlled by hydraulic System for change of flute rolls as per order specification.
Corrugated rolls are made of Special Alloy Steel.
Build in Pre heating & Pre-condition Rollers.
Ensures absolutely secure bonding.
With Heavy duty Hydraulic Power pack.
With Gum Circulating System.
With Helical gear Box.
With Dam System for control of gum transfer width wise.
With A.C. Frequency Drive for speed control.
Available Width: 1200-2200mm.

We Manufacture and Exporting Machines as per your special Specifications and Requirements.
