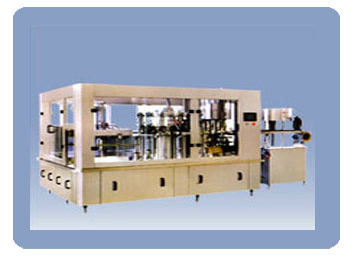

Fab Series Automatic Rinser - Filler - Capper
Fab Series Automatic Rinser- Filler- Capper Fab Series Automatic Rinser- Filler- Capper ( For Carbonated Drinks) Suitable for filling carbonated beverages like CSD, soda, carbonated juices etc. in PET bottles. The fully automatic machine performs integrated operation from air conveying to rinsing to filling and capping. The machine is controlled by touch-screen PLC and incorporates full automation for level control in drink tank and magnetic torque controlled screw capping.
Technical Specifications:
| Model | FAB-C 8-8-4 | FAB-C 12-12-4 |
FAB-C 16-16-5 |
FAB-C 18-18-6 |
DGCF 24-24-6 |
| Production capacity | 1000-2000 | 2000-3000 | 3000-4000 | 4000-6000 | 8000 |
| Filling precision | <+5mm (Liquid level) | ||||
| Filling Pressure | Filling pressure (Mpa) | ||||
| Polyester Bottle Standard (mm) | Bottle Diameter; 50-100; Height: 150-320 | ||||
| Suitable Cap Shape | Plastic Screw Cap | ||||
| Water Consumption for Water Bottling (kg/h) | 500 | 1000 | 2000 | 3000 | 3900 |
| Gas Consumption (m3/min) | 0.3 | 0.3 | 0.4 | 0.5 | 0.6 |
| Total power (kw) | 5.03 | 4.1 | 6.57 | 8.07 | 10 |
| Total Weight (kg) | 3000 | 2200 | 4000 | 5000 | 6000 |
| Dimension (LxWxH)(mm) | 2100 x 1300 x 1900 | 2100 x 1300 x 1900 | 2400 x 1800 x 1900 | 4000 x 2200 x 1900 | 4500 x 2500 x 1900 |
We Manufacture and Exporting Machines as per your special Specifications and Requirements.
