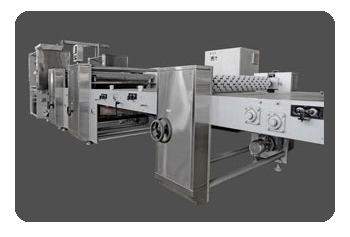

Rotary Biscuit Cutting Machine

The Rotary Biscuit Cutting Machine is required to make desired shape of crackers/hard dough biscuits. The gauge rollers, which are integral part of to this machine, gradually reduce the thickness of the sheet and then supply the same to the relaxing web. The relaxing web folds and prepares the dough sheet for cutting process.

Design:
The Rotary Biscuit Cutting Machine is designed Horizontal type with 2, 3 or 4 gauge rollers, made of Chilled Iron, triple roll sheeter, single or twin cutting roll system, intermediate conveyors with independent speed control, scrap pick-up and scrap-return conveyor, swivel panner web.

Capacity:
As per the length and width of the ovens, ranging from 800 to 2000mm wide.

Features:
Fully automatic controlled by VFD, HMI display and PLC.
All contact parts made in stainless steel.
Capable to make shape of all types of crackers & hard dough biscuits.
Pneumatic web tracking control.

We Manufacture and Exporting Machines as per your special Specifications and Requirements.
