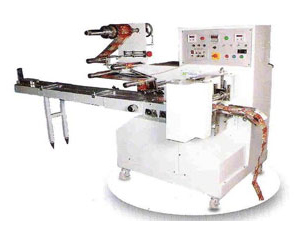

Horizontal Flow Wrapper Machines

We are one of the leading manufacturer and exporter of the specially designed Horizontal Flow Wrapper Machine. Highly versatile Horizontal Flow Wrapper Machine is suitable for packing various type of products such as Biscuits, Creams, Wafers, Instant Noodles, Chocolate Bars, Jelly and many other items as per customer requirements.

Technical Specifications:
Feeding System: Automatic / Manual
Packing System: Center Seal / Four Side Seal

Packing Size:
Film Length :- 70 - 300 mm
Film Width :- 30 - 180 mm
Film Height :- 3 - 100 mm

Packing Range: 0.5 to 1 Kg
(Depend on the Specific Gravity of the product to be packed)

Dimension: 1080x1700x1800 mm (Approx.)
Weight: 480 Kg (Approx.)
Packing Materials: All types of Laminated

Power Required:
Motor: 1.5 H.P. DC with DC drive
Voltage: 220 V
Phase: Single Phase @ 50 Hz
Heater Load: 3 KW

We Manufacture and Exporting Machines as per your special Specifications and Requirements.
