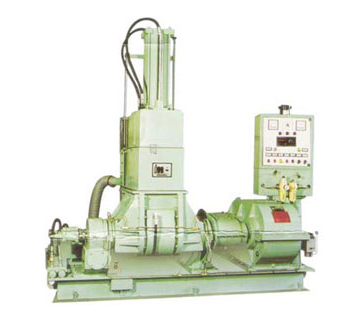

Dispersion Kneader

Understanding the needs of Plastic & Rubber Processing Industry and developing fully indigenous solutions to cater to these needs has always been the prime target.Dispersion mixer can be employed in a wide range of material mixing, ranging from low viscosity adhesives to high viscosity rubber.

Features :
Maximum Dispersion: Maximum dispersion is obtainable by means of double bladed rotors and proper clearance and jacket construction which ensures effective cooling.
Easy Cleaning Of the Mixing Chambers: Tilting of mixing chamber enables complete interior inspection and easy cleaning. Hence colour changes can be done with ease.
Cooling Effects: In order to obtain constant cooling of the rotors and the main body, there is a provision for effective cooling through special type of jacketing arrangement and rotor construction to give optimum cooling effect.
Sampling: Sampling During Mixing can be done when pressure lid at upper position. This is not possible in ordinary enclosed type mixer.
Improved Wear Resistance: Special alloy for rotor contact surface has improved wear resistance. The dry type packing assures that the machine is not contaminated. Replacement and cleaning of packings are done in a simplified manner.
Gear Box: The Gears are 'Helical' made of alloy steel forgings and lapped to ensure sturdy and noiseless operations.

Dispersion Kneader Specification
Model	Main Motor H.P	Total Capacity	Working Cap	Rotor Revolution R.P.M	Tilt. Method	Tilt Angle	Tilt Motor H.P	Air Comp H.P	Wt Approx Tons.
DX 10	20	25	10	32.25	Worm Gear	130	2	2	2.5
DX 25	40	45	25	32.25	Worm Gear	130	3	3	6.0
DX 35	60	75	35	32.25	Worm Gear	130	3	3	7.5
DX 55	75/125	125	55	32.25	Worm Gear	130	5	5	8.0
DX 75	100/125	170	75	32.25	Worm Gear	130	5	5	9.0
DX 100	125/100	210	100	32.25	Worm Gear	130	7.5	7.5	10.0
DX 125	150	250	125	32.25	Worm Gear	130	7.5	10	11.0
DX 150	200/250	275	150	32.25	Worm Gear	130	10	10	12.0

We Manufacture and Exporting Machines as per your special Specifications and Requirements.
