Automatic Multi Way Cooling Tunnel

Shabnam Industries is a leading Manufacturer & Exporter of Automatic Multi Way Cooling Tunnel. Our product range also comprises of Biomass Fuel Briquetting Plant, Paper Corrugating Machine and Corrugated Cardboard & Box Making Unit.

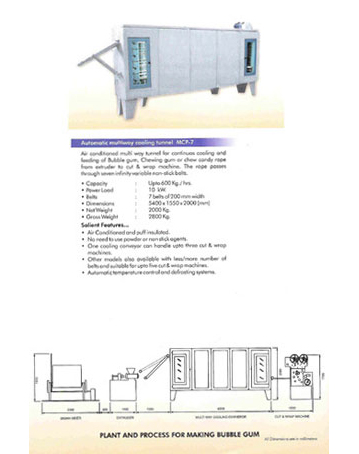

We are one of the leading manufacturer and exporter of the specially designed Automatic Multi Way Cooling Tunnel. Air conditioned Automatic Multi way Cooling Tunnel is suitable for continuous cooling and feeding of Chewing gum, Bubble gums, Chicklet, chewing candy rope from extruder to cut & wrap machine. The rope passes through seven infinity variable non-stick belts.

Features :
1. Air conditioned and puff insulated.
2. No need to use powder or non stick agents.
3. One cooling conveyor can handle upto three cut & wrap machines.
4. Other models also available with less/more number of belts and suitable for upto five cut & wrap machines.
5. Automatic temperature control and defrosting systems.

Technical Specifications :
1. Capacity: Upto 600 Kg/Hr
2. Power Load: 10 KW
3. Dimensions: 5400x1550x2000 mm
4. Belts: 7 Belts of 200 mm width
5. Net weight: 2000 Kg
6. Gross Weight: 2800 Kg

We Manufacture and Exporting Machines as per your special Specifications and Requirements.
