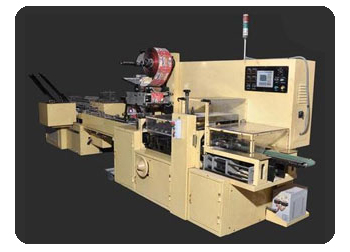

Flow Pack With Servo

The Flow Packing Machine is used for the packing of the Biscuits.

Specification of Flow Pack Machine
Outputs: 180 RPM
Product : Length: Min: 60 mm; Max: 200 mm
Width : Min: 40 mm; Max: 75mm
Height: Min: 50 mm; Max: 70 mm
Width + Height : < 125 mm
Wrapper cut off length: 120-250 mm

Features of Flow Pack Machine
Rugged, highly reliable & operators friendly machine.
Unique double jaw profile for consistent & quality sealing.
Virtually maintenance free 4 axes servo automatic in feed system.
Two way automatic print registration.
6 fin roller unit (2 cold & 4 hot).
Unique slug control system for smoother handling.
On the fly dowel setting.
Application of integrated motion control system.
HMI for functional parameter setting, fault display & diagnostic.
Minimum change parts requirements.
All Product Contact Parts with SS-304.

We Manufacture and Exporting Machines as per your special Specifications and Requirements.
