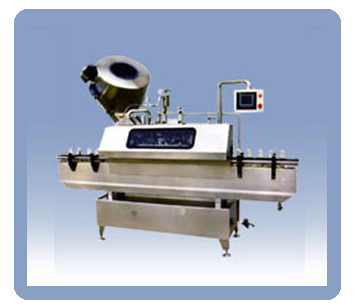

Automatic Filling / Capping Lines For Glass Bottles

Automatic Filling / Capping Lines For Glass Bottles are suitable to automatically seal twist-off Lug Caps on glass bottles. The machine is a state-of-the-art sealing machine incorporating steam spray exhausting, mechanical sealing and water spraying thus ensuring perfect vacuum sealing of bottle. The machine is PLC controlled, GMP model.





Technical Specifications

Model No.	CS9
Capacity	60 - 75 B/min
Closure Types	Three twist cover, Four twist cover, Six twist cover & Pressing twist cover
Cap/Jar Diameter	30-90mm
Bottle/Jar Diameter	30-100mm
Bottle/Height	65-260mm
Motor Power	3.12kw
Steam Consumption	180-230kg/h
Steam Pressure	0.4MPa
Max. Vacuum Degree	67kPa (502mmHg)
Weight	1100kg
Outer Dimension	3000x1100x2000mm

We Manufacture and Exporting Machines as per your special Specifications and Requirements.
